Caracteristicas

Especificaciones

Model Number: VS1

Product name: VCB

Standard: IEC62271

Electrical Life(Time): 10000times

Type: Vacuum

Poles Number: 3

Información básica

Model Number: VS1

Pago y Envío Términos

Packaging Details: Standred Export Wooden Carton

Supply Ability: 100 Unit/Units per Week

Descripción de producto

Product Description

Specification

Rated voltage		kV	12	24
Rated insulation level	Power frequency withstand voltage (1min)	kV	42/48	65/79
Rated insulation level		Lighting impulse withstand voltage (peak)	kV	75/85	125/145
Rated current		A	630-4000	630-3150
Rated short-time withstand current		kA	25-40	25-40
Rated peak withstand current		kV	63-100	63-100
Rated short-circuit breaking current		kA	25-40	25-40
Rated short-circuit making current		kA	63-100	63-100
Rated frequency		Hz	50	50
Secondary circuit rated short-time withstand voltage（1min）		kV	2	2
Secondary circuit rated voltage		V	DC110、220 / AC110、220	DC110、220 / AC110、220

Ponerse en contacto

Planta 12, bloque D, calle ChangDai, Hengyang, Hunan, China

Sobre

Perfil de la empresa Visita a la fábrica Control de Calidad Contacto

Productos

Interruptor de circuito magnético disyuntor micro Cortacircuito del motor Todas las categorías

Envíenos un correo

Háganos saber su requerimiento. Conectaremos los mejores productos contigo.

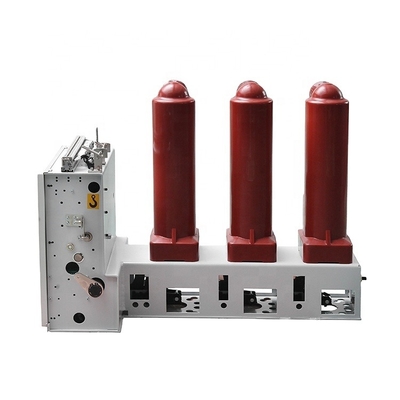

VS1 Series Vacuum Circuit Breaker Indoor Side Type 4000A VCB VS1
