Inicio /Productos/Interruptor de circuito cuadrado/Residual Current Circuit Breaker Auto Recloser RCCB EBS2LST

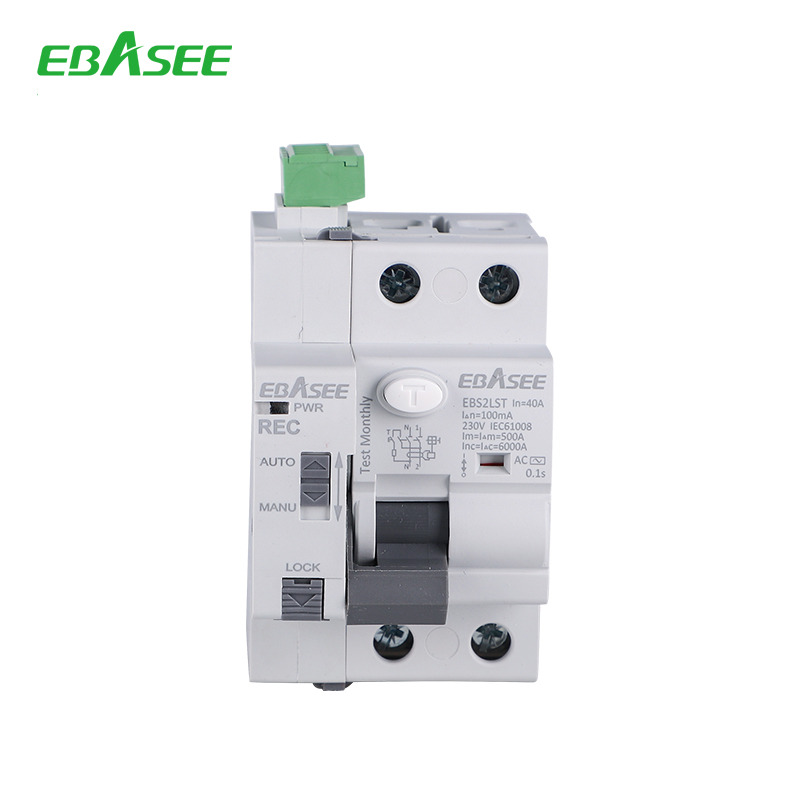

Residual Current Circuit Breaker Auto Recloser RCCB EBS2LST

180.0 Pieces
MOQ
Residual Current Circuit Breaker Auto Recloser RCCB EBS2LST
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: EBS2LST
Name: Automatic Recloser RCCB
Rated voltage: AC 220V
Rated current In(A): 16,20,25,32,40,50,63
Residual current(A): 10,30,100,300,500
Pole: 2,4 Pole
Residual trip type: type:C,AC,A,S
Power terminals: A1-A2
Voltage: AC 220V(50-60HZ)
Automatic times: 3 times
Recloser time relay: 10S-60S-300S
Type: Residual Current
Poles Number: 2,4
Información básica
Model Number: EBS2LST
Pago y Envío Términos
Packaging Details: 1. Tehow Standard mcb export packing. 2. 180pcs for a standarde miniature circuit breaker export packing box.
Supply Ability: 100000 Piece/Pieces per Month miniature circuit breaker
Descripción de producto
Products Description
Function:
1. Provides protection against earth fault/leakage current and function of isolation
2.High short-circuit current withstand capacity3.Application to terminal and Pin/U type busbar connection
4.ON/OFF display function of contact position
5.Fire resistant plastic parts endures abnormal heating and strong impact
6.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
EBS2LST
Control method
Digital input control and automatic recloser
Power terminals
A1-A2
Voltage fuctuation range
AC 220V (50-60Hz)
Power consumption
AC max.1VA(standby) max.20VA(Working)
indicator light
Red and green LED
Action time
s0.1S
Automatic tipping times
3 times
Reclose time delay
10S-60S -300S
Clearing times after closing
No more tips or clears within
15 minutes of successful closing
Mechanical life
10000
Electrical life
4000
Working temperature
-20C to +50C(-4°Fto 131*F)
Installation
Din rail EN/IEC60715
Protection class
IP20
